Artec Eva

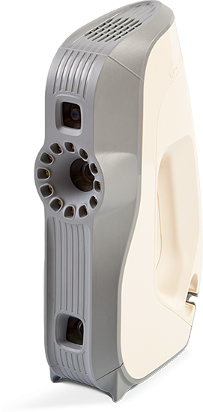

This structured light 3D scanner is the ideal choice for making a quick, textured and accurate 3D model of medium sized objects such as a human bust, an alloy wheel, or a motorcycle exhaust system. It scans quickly, capturing precise measurements in high resolution, which allows for almost unlimited applications, without the use of additional equipment.



Light, fast and versatile, Eva is our most popular scanner and a market leader in handheld 3D scanners. Based on safe-to-use structured light scanning technology, it is an excellent all round solution for capturing objects of almost any kind, including objects with black and shiny surfaces.

Overview



Artec Eva’s ease of use, speed and precision has made it an essential product for a wide range of industries. From rapid prototyping to quality control, CGI to heritage preservation, the automotive industry to forensics, medicine and prosthetics to aerospace, the device is used to customize, innovate and streamline countless forward-thinking industries. Eva was even used to scan Barack Obama and help make the very first 3D portrait of an American president.





1. The best 3D scanner for making a fast, accurate 3D model

2. Artec 3D scanners & applications customizing, innovating and streamlining a wide range of different industries

Powerful hybrid geometry and texture tracking and capture



Eva is able to read both the geometry and color of the object being 3D scanned. As a result it collects two sets of data by which to track and to perform post-processing.



1.Easier, smoother 3D scanning

2.Faster post-processing

3.Achieve best possible results with geometry and texture data combined

4.Scan even large, featureless objects using color differentiation

5.Option to scan with targets

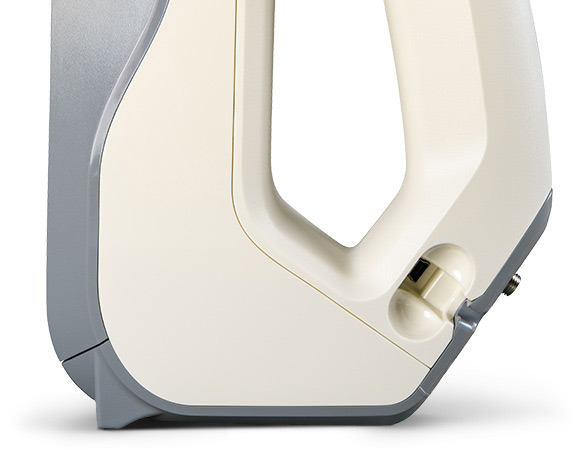

Specifications
ProductArtev Eva
3D resolution0.5 mm
3D point accuracy0.1 mm
3D accuracy over distance0.03% over 100 cm
Colors24 bpp
Texture resolution1.3 mp
Scanning technologystructured light
Structured light sourceflash bulb (no laser)
Working distance0.4 – 1 m
Linear field of view, HxW @ closest range214 × 148 mm
Linear field of view, HxW @ furthest range536 × 371 mm
Angular field of view, HхW30 × 21°
Video frame rate16 fps
Exposure time0.0002 sec.
Data acquisition speed2 mln points / sec.
Multi core processingYes
3D formatsOBJ, PLY, WRL, STL, AOP, ASCII, Disney PTEX, E57, XYZRGB
Formats for measurementsCSV, DXF, XML
Weight0.85 kg (1.9 lb)
Dimensions, HxDxW262 × 158 × 63 mm
Power consumption12V, 48W
Interface1 × USB 2.0, USB 3.0 compatible
Processing capacity40 mln triangles / 1 GB RAM
ProcessorIntel I5 or I7
Memory12 GB
OSWindows 7, 8, 10 – x64
Software

Smart and easy 3D data post-processing software

Enjoy the full range of advanced tools with the most comprehensive 3D data processing software available today.



Working with 3D scanning data has never been easier thanks to the smart Autopilot mode which ensures the most seamless workflow for new and experienced users alike, by automatically guiding them through all of the post-processing steps. This revolutionary mode applies the best possible algorithms to your scan data in order to build a perfect 3D model right before your eyes.



Manual mode is also available, giving users absolute control over advanced tools. Whether you use Autopilot or manual mode, Artec Studio will create high-quality 3D models suitable for export to CAD, 3D printing and more.
