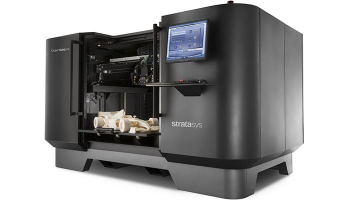

Objet1000 Plus

With its multi-material capabilities, substantial throughput and ultra-large build tray, anyone can 3D print any design on the Objet1000 Plus, no matter how complex or detailed.

Overview

Professional printer for building industrial-scale parts and ultra-large build tray

With its multi-material capabilities, substantial throughput and ultra-large build tray, anyone can 3D print any design on the Objet1000 Plus, no matter how complex or detailed.

The Objet1000 Plus is equally adept at printing large or small prototypes with no compromise on precision. Print large parts over 1 meter in length in one build, eliminating the need to split your largest files in CAD and later bond the parts. Print many parts in one job and enjoy a competitively low cost per part.

Digital material options enable you to combine up to 14 different materials in one part, including VeroClear, Rigur, and the Tango and Vero families.


Specifications
ProductObjet1000 Plus
Build Size1000 x 800 x 500 mm (39.3 x 31.4 x 19.6 in)
Layer ThicknessHorizontal build layers as fine as 0.016 mm (0.0006 in)
Build ResolutionX-axis: 300 dpi; Y-axis: 300 dipl; Z-axis: 1600 dpi
Operating SystemWindows 7/Windows 8
System Size1960 x 2868 x 2102 mm (77.5 x 113 x 83 in.)
Weight2200 kg (4850 lbs.)
Materials
Model Materials
  • Transparent rigid (VeroClear™)
  • Rubber-like (TangoPlus™ and TangoBlackPlus™)
  • Rigid Opaque (Vero family)
  • Simulated Polypropylene (Rigur™)
Digital Materials
  • Transparent shades and patterns
  • Rubber-like blends in a range of Shore A values
  • Simulated Polypropylene blends in rigid and flexible options
  • Digital ABS Plus™ & Digital ABS2 Plus™ matches those properties and provides
Support MaterialsSUP705 (WaterJet removable)
