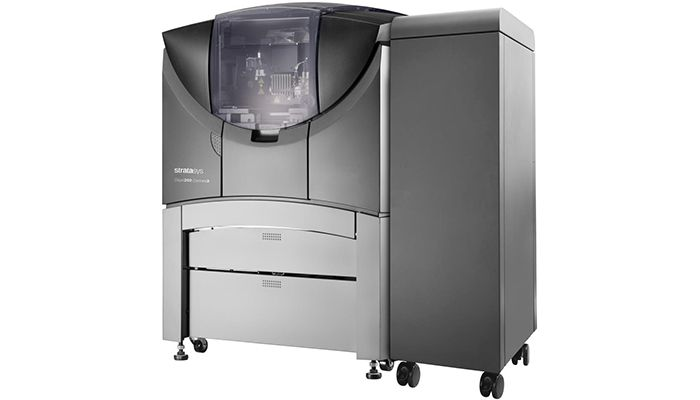

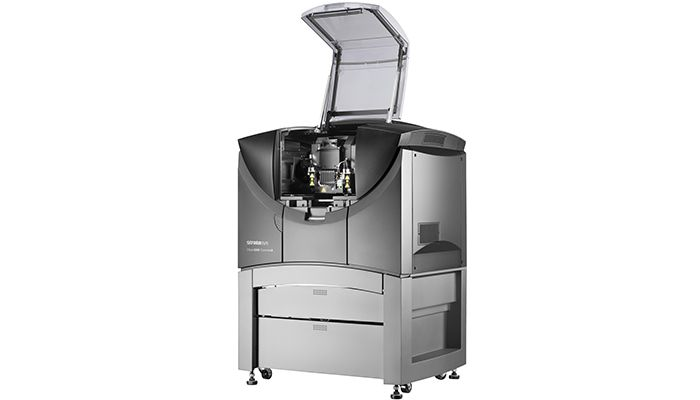

Objet260 Connex3

The Objet260 Connex3 empowers you to create multi-color, multi-material models whenever you need them, whether that's translucent, rigid or thermal-resistant.

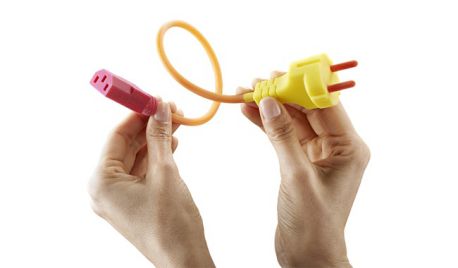

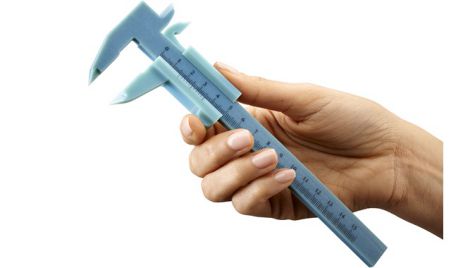

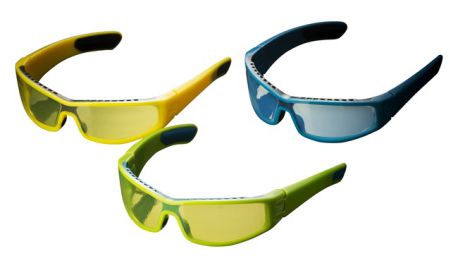

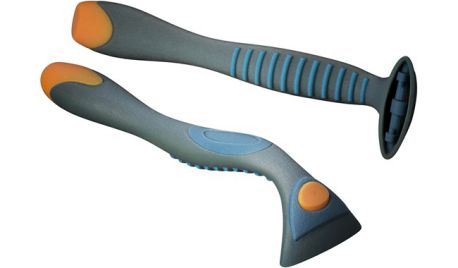

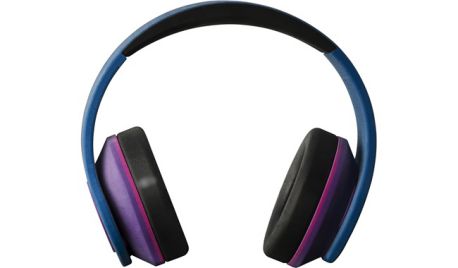

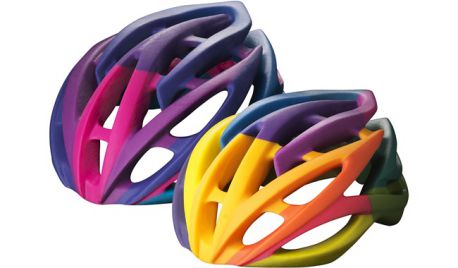

The Connex3 create brilliantly colored prototypes to fit your application needs, any type of model you may need: from rigid to flexible, transparent to opaque, neutral to vibrant, standard to bio-compatible and durable to high temperature.

A simple workflow between your CAD application and the Connex3 lets you produce smooth three-color gradients and vivid multi-color models based on the color information in your original CAD file. The Connex3 lets you see, touch, test and perfect every detail.

Specifications
ProductObjet260 Connex3
Build Size255 × 252 × 200 mm (10.0 x 9.9 x 7.9 in.)
Layer ThicknessHorizontal build layers as fine as 16 microns (.0006 in.)
Build ResolutionX-axis: 600 dpi; Y-axis: 600 dpi; Z-axis: 1600 dpi
System RequirementsWindows 7
SizeSystem Size: 870 x 735 x 1200 mm (34.2 x 47.2 x 29 in.)
Material Cabinet: 330 x 1170 x 640 mm
WeightSystem Size: 264 kg (581 lbs.)
Material Cabinet: 76 kg (168 lbs.)
Materials

Model Materials

  • Vero multi-color series
  • Tango series
  • MED610
  • Digital ABS & Digital ABS2
  • DurusWhite RGD430
  • RGD525
  • VeroClear & RGD720

Support Materials

  • SUP705
  • SUP706
